Universal Instruments Machine Controllers


We have a large quantity of Universal Instruments machine controllers. J11 8223 and 8222 V3 Controllers. We also carry replacement cards for the 8222 controller.

Universal Instruments J11 Controller (often referred as 8223 / 256K assembly)

  • The J11 Controller is commonly known under part numbers 41702001 or 41702002, sold as the “8223 / J11 Controller 256K” assembly. It is used in Universal Instruments auto-insertion systems and generally features 256 KB memory.

Universal Instruments 8222 Controller (128K / V3)

  • The 8222 Controller—also labeled “8222/V3 Controller with 128K memory” (part number 41228601)—is a variant used in similar URS/through‑hole assembly machines.
Controllers
J11 Machine Controller
Universal Instruments
Universal Instruments J11 Controller
J11 Machine Controller

Universal Instruments

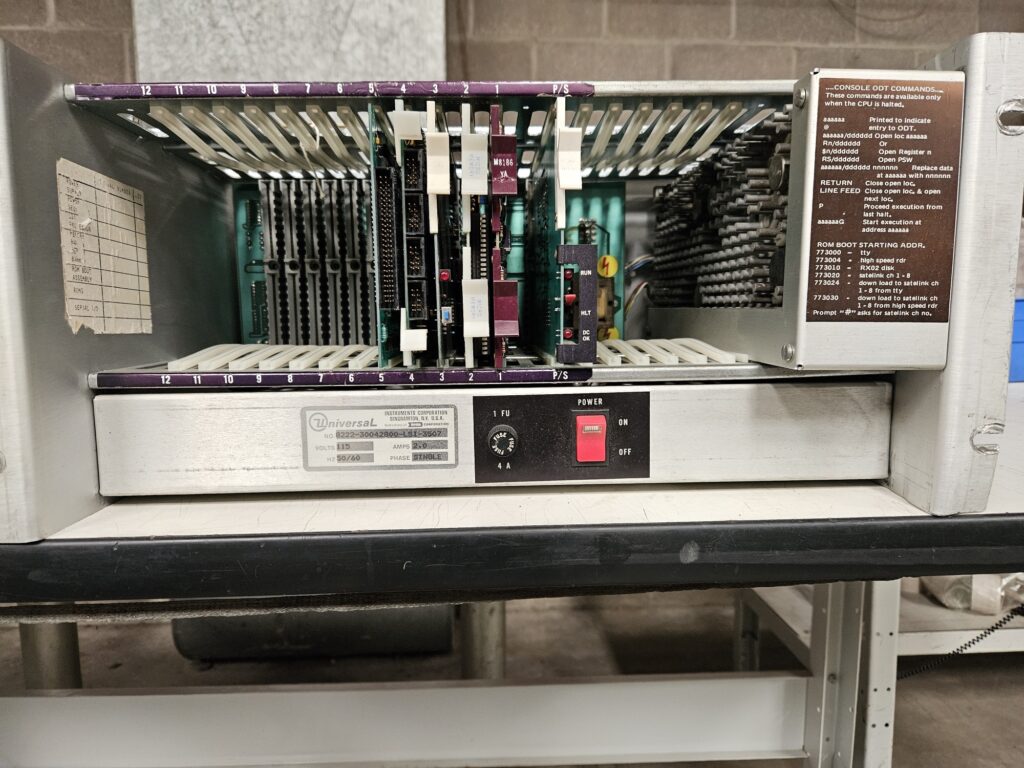

8222 Machine Controller
8222 Machine Controller

Before replacing any controller be sure to check the supply voltages to the unit. Failure of the 5+, 15+, 15- or 24V AC will cause the controller to not operate.

Please contact us for more information.
